Vision FVR - Mark 4 Installation Quick Guide

Modified on Thu, 26 Sep at 3:40 PM

VISION FVR MARK4 INSTALLATION


Equipment Key

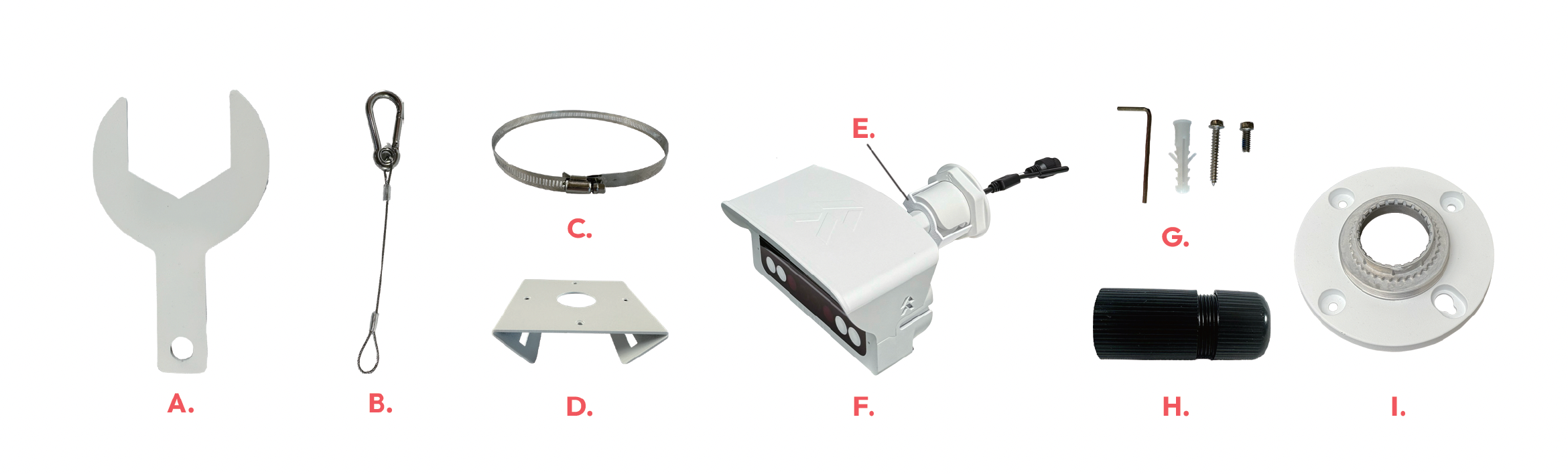

A. WrenchC. Ring Bracket (x2)E. Temporary plastic packaging bracketG. 4 bolts and 2 Allen keys /

4 wall mount screws and anchors

B. Assembly AidD. Pole MountF. FVR-Mark4 UnitH. Weatherproof grommet

I. Camera base mount


Step 1: Initial Mount Instructions


1. Install the weatherproof grommet on the network cable at the install point, do not tighten.




2. On the junction box,

  • If cover bolts are present, loosen the top-most cover bolt until it sticks out. Remove other cover bolts and set them aside
  • If cover bolts are not present, insert and partially thread a bolt from bag into the topmost cover hole.




3. Thread main unit (F) cables through the base (I) and mate by threading 2 full turns of the base, leaving it attached but loose for adjustability.


4. Remove and discard the temporary plastic packaging bracket (E).





Step 2: Hang Vision Unit

Wall Mount

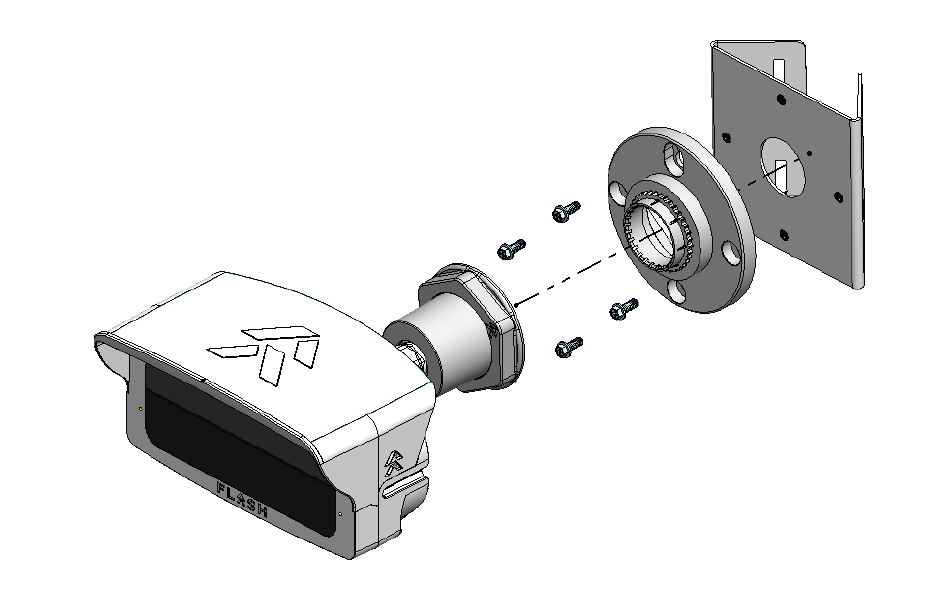

  1. Hang the main unit and base assembly from the top cover screw of the junction box using the largest mounting hole.




Step 3: Connect Network Cable and fasten Vision Unit

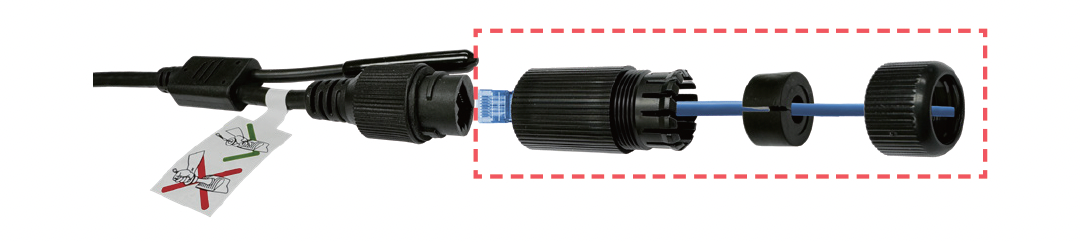

  1. Mate the network cable to the Vision unit and seal the weatherproof grommet.
  2. Stuff all wires into the junction box (or behind the bracket for the pole mount).
  3. Remove the assembly aid (ceiling mount only).
  4. Insert and tighten any additional bolts to secure the base.




Step 4: Aim Unit

1. Lightly pull the camera away from the base and aim it towards the activation loop of the lane.

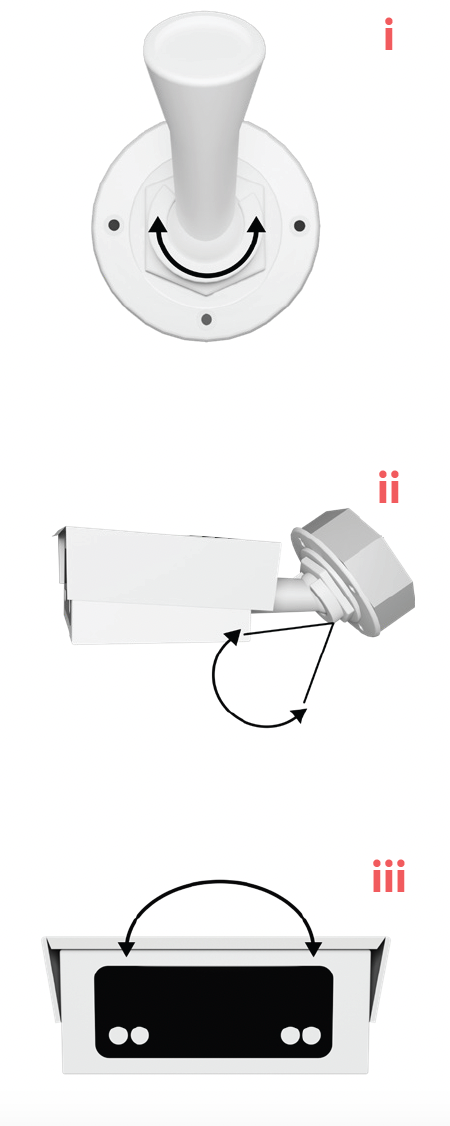

2. Adjust using the three main variables:

  • Rotation of the ball housing
  • Tilt of the neck
  • Rotation of the unit face (for leveling)


3. Hand-tighten the large hex bolt at the base of the FVR-Mark4 Unit until snug. The unit may still move but should not move easily under its own weight.



4. Final tightening will be done during the commissioning stage by tightening the large hex bolt using the provided wrench AND set screw at the ball base with provided Allen key.







Mount Variations

Be sure to follow these instructions for ceiling mounts to ensure the safe handling of the Vision unit. ( These instructions replace Step 2 in the guide).


Ceiling Mount

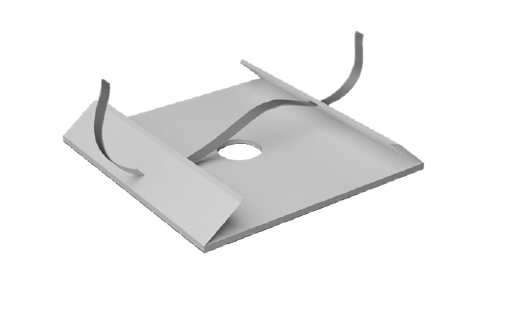

  1. Thread the loop end of the overhead assembly aid (B) through a smaller mounting hole of the camera base mount, then loop the clip end through the loop.
  2. Use the assembly aid to hold the unit, not the wires. Hang the main unit from the ceiling mount and mate the network and VISION unit cables.



Pole Mount

  1. Thread a pole ring bracket through the pole mount slots and wrap it around the pole at the desired location. Ensure the network cable can pass through the pole mount.
  2. Tighten the pole ring by screwing the worm-gear screw.
  3. Thread the network cable through the center hole of the pole bracket.
  4. Thread the second ring bracket through the pole mount and tighten.
  5. Insert and partially thread a bolt from into the topmost cover hole.

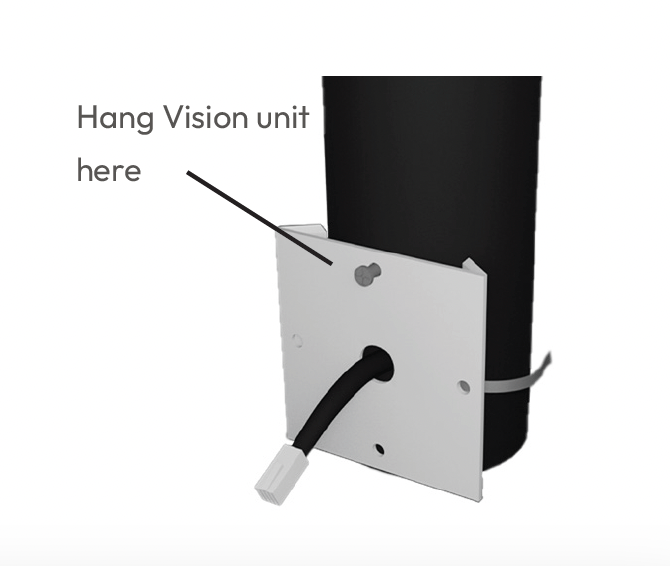

  6. Using the largest hole on the base of the main unit, hang the main unit from the bolt.


Proceed with “Step 4 - Connect Network Cable and fasten Vision unit”.
