VISION PORTAL

The Vision Portal serves as the central hub for managing and reviewing License Plate Recognition (LPR) events, encounter details, and system reports, providing users with a comprehensive platform for monitoring and system management.

Topics Discussed

• Accessing the Vision Portal
• Home Tab
  • Recent Encounters
  • Encounter Details
  • View Historical Events
• Performance Reports
• Telemetry Tab
• Platelists Tab
• Plate Replacement

Accessing the Vision Portal

The Vision portal can be accessed by navigating to https://vision.flashos.com/.

Contact Flash Support at support@flashparking.com for access to the Vision portal.

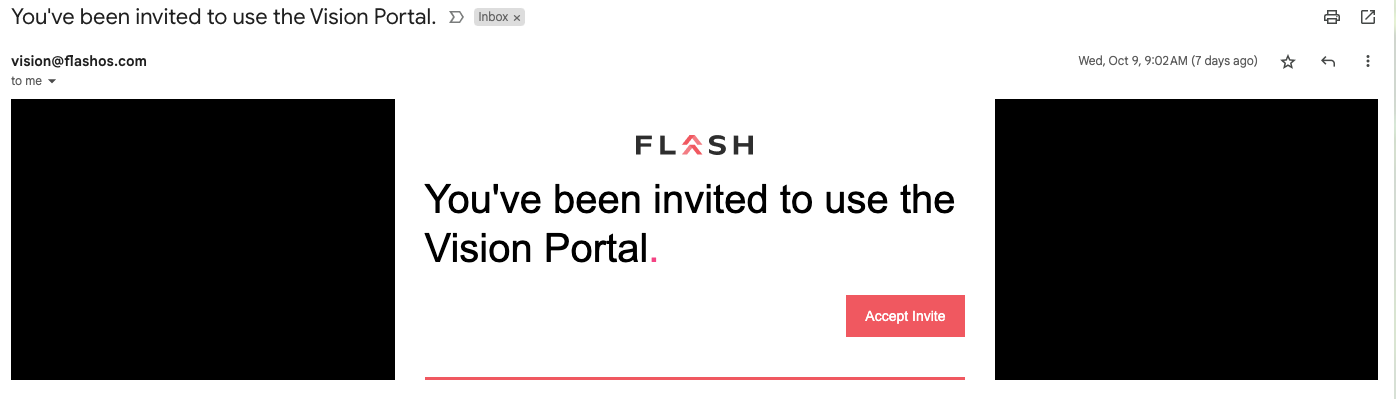

A valid email address is required to access the Vision Portal. Once a user account is created, an invitation email will be sent to the provided email address. For any future password resets, users can simply use the Forgot Password link located on the login page to regain access.

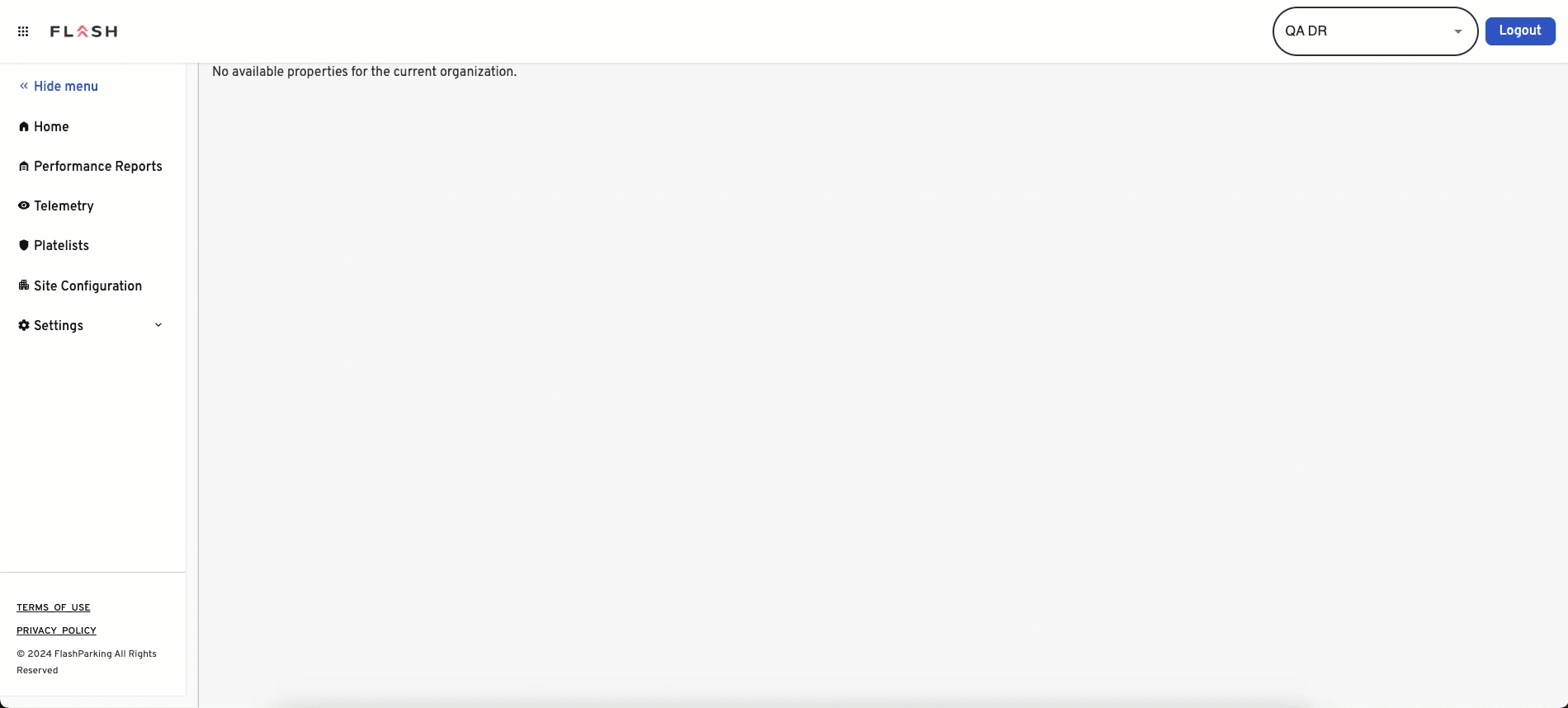

Flash Panel

The Vision portal is accessible through the Flash Panel, which serves as a central hub connecting various Product Admin portals. This streamlined access allows users to efficiently navigate between different Flash products and manage their operations from a unified platform.

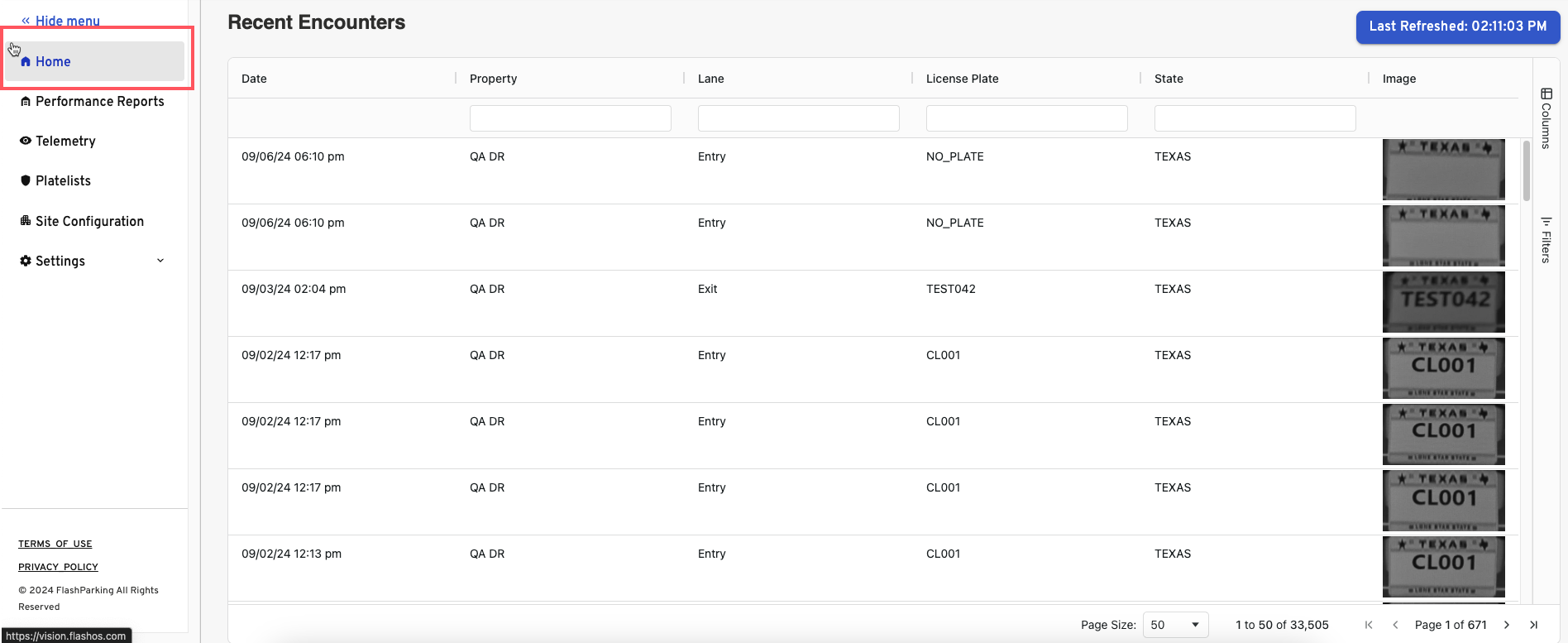

Home Tab

The Home tab shows the most recent License Plate Recognition (LPR) events. To view additional images and detailed information for a specific event, simply click on any row once. This allows for quick access to expanded event data without leaving the main screen.

Recent Encounters

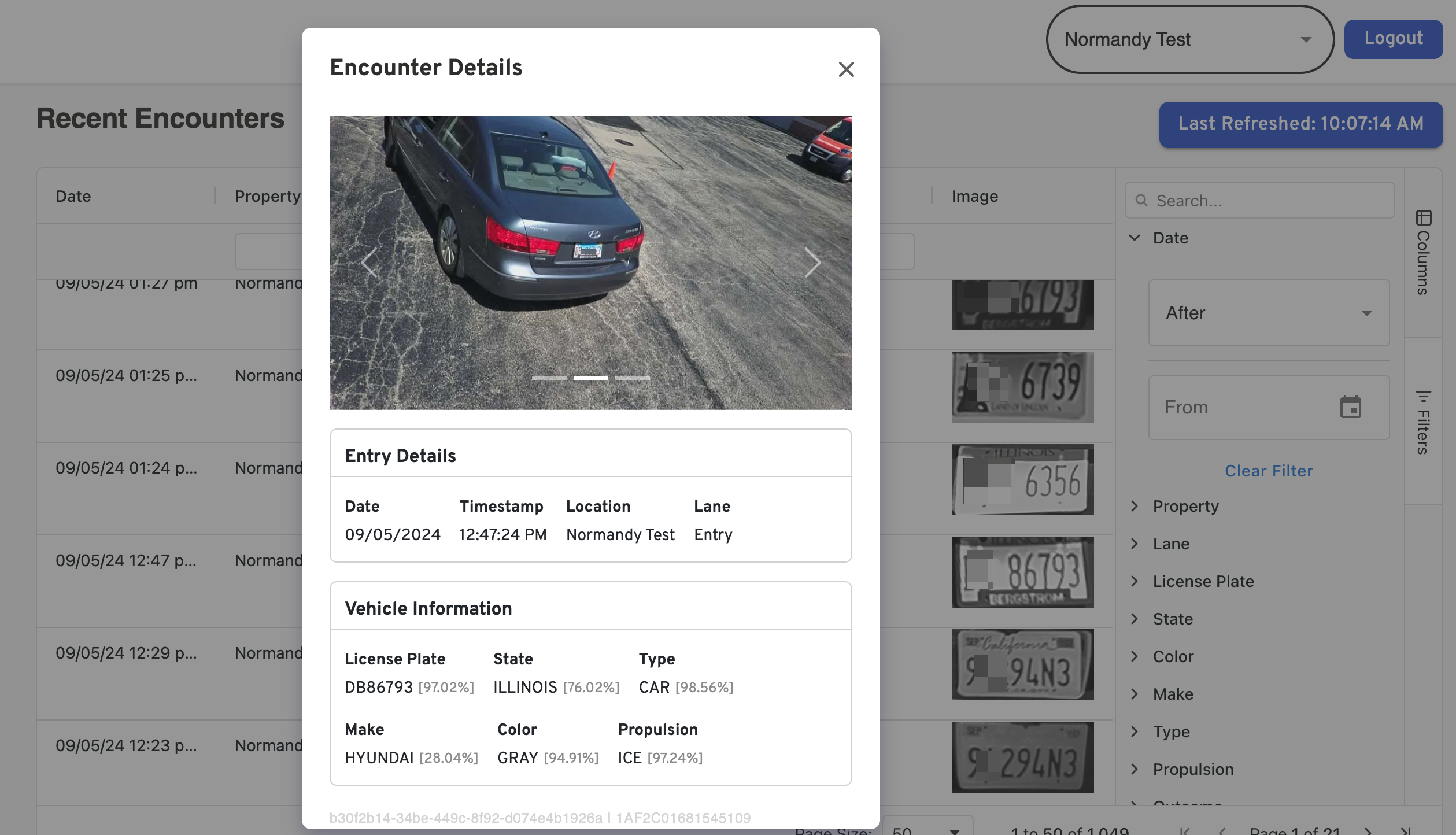

Encounter Details

The Encounter Details provide a variety of data points related to each captured event. You can customize which data points are displayed by using the Columns tab on the right side of the interface. This flexibility allows you to tailor the report view to your specific needs, ensuring that the most relevant information is easily accessible.

• Date
• Timestamp
• Location (Property)
• Lane
• Image
• License Plate
• State
• Type
• Make
• Color
• Propulsion (engine type)
• Platelist

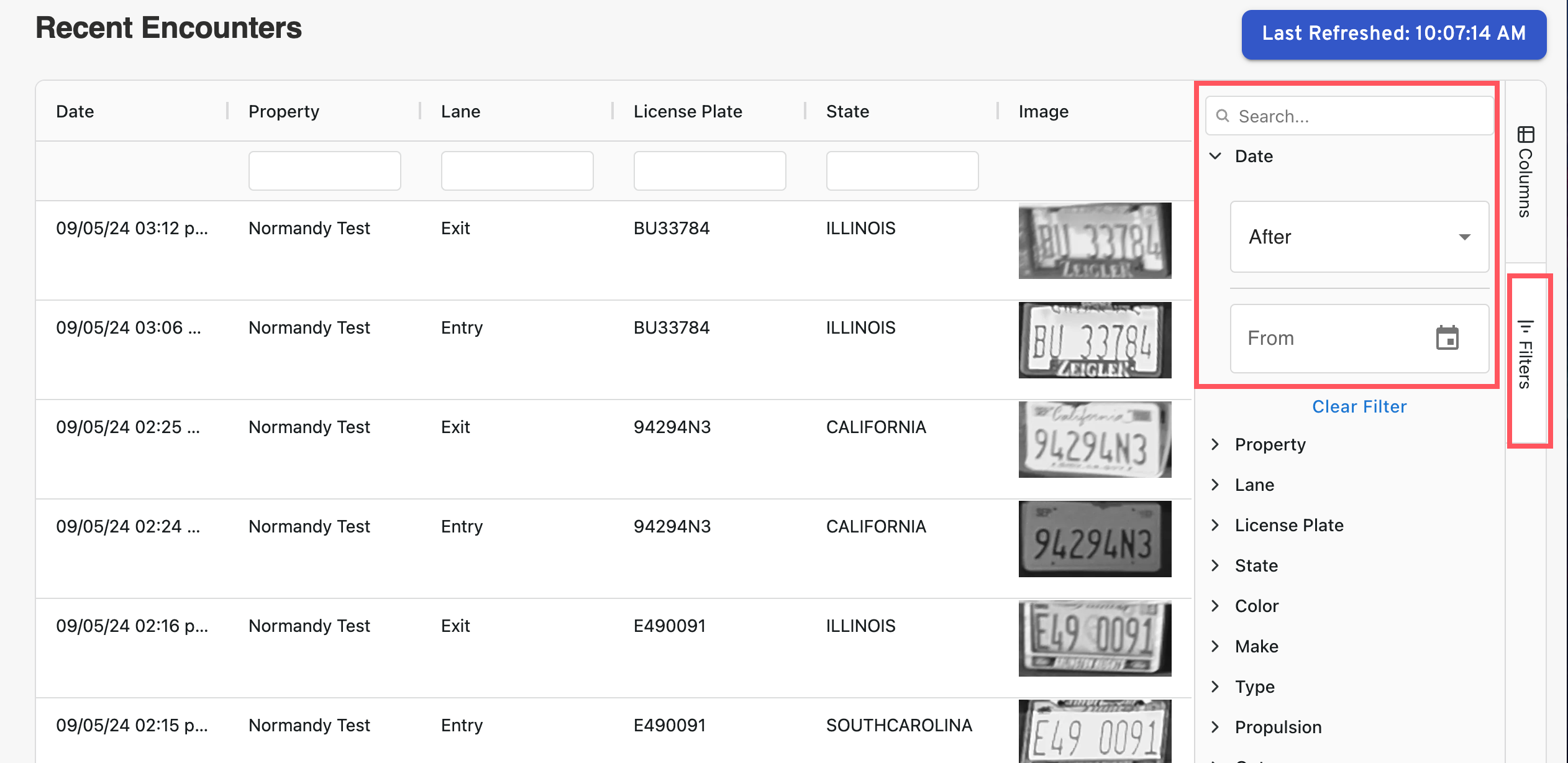

View Historical Events

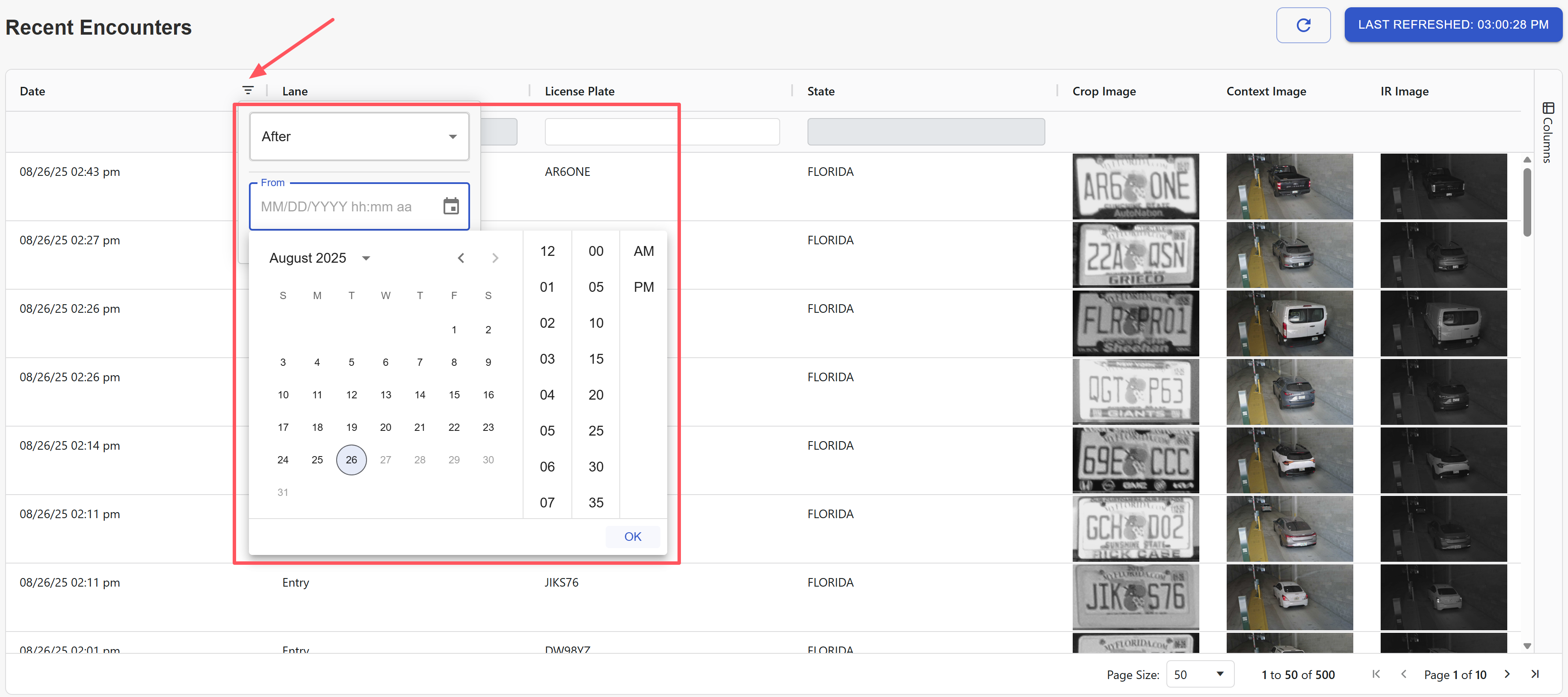

The Recent Encounters list automatically displays the most recent camera captures by default. To view older events, simply use the Filters tab located on the right side of the interface and select the Date option. This allows you to quickly access historical data for review and analysis.

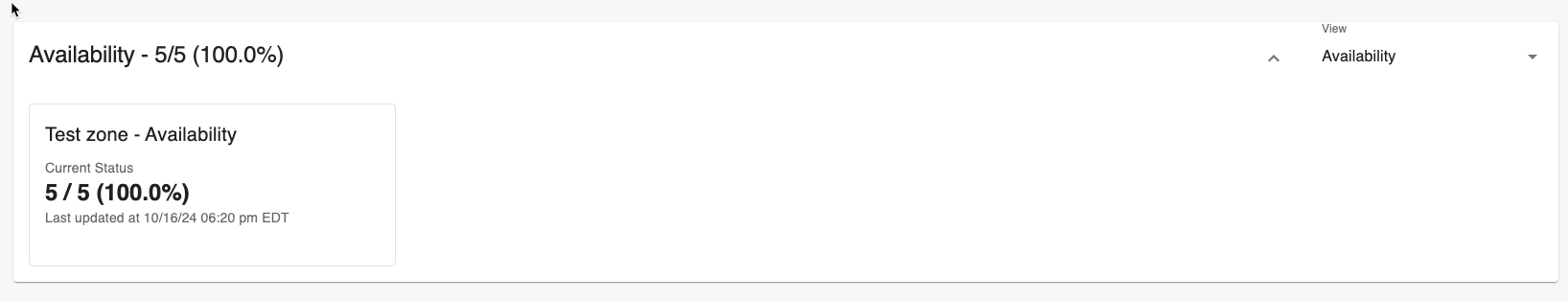

Occupancy Counts

If enabled for the location, the Vision portal provides an occupancy count based on captured events. These Availability/Occupancy counts are displayed above the Recent Encounters list within the Home tab, offering real-time insights into parking space availability and usage.

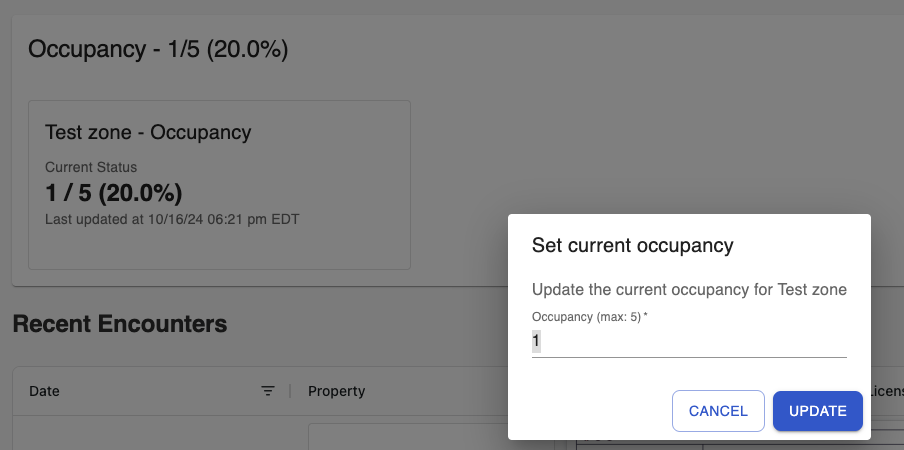

Edit Count

If the count is off, it can be edited by clicking the current status percentage.

Performance Reports

The Performance report details the accuracy ratings for the events captured during a selected period. The accuracy percentages will populate after an Admin user (Flash internal only) manually reviews the events and sets the disposition reasoning for any inaccurate or erroneous reads.

Calculated Results

• Accurate Events: Correct captures (Events with no edits in Scored Sample
• N-1: LP edits with 1 character off
• N-2: LP edits with 2 characters off
• Inaccurate Events: Total of LP edits
• Not Applicable:  Number of events removed from sample (by changing disposition to damage, obstruction, or No Plate.
• Scored Sample: Number of events included in the scored sample
• Sample Size:  total number of events captured

Telemetry Tab

Telemetry reports provide crucial insights into the health and performance of the FVR-Mark4 units by monitoring various operational metrics. These reports are essential for troubleshooting and optimizing performance, allowing users to identify and resolve issues before they impact the system's functionality. By tracking data such as CPU usage, RAM capacity, temperature levels, and storage utilization, telemetry reports offer a comprehensive view of how efficiently a system is operating. Below is a breakdown of key telemetry reports and their functions.

View the Telemetry guide for more details on each available report.

Platelists Tab

The Vision plate list management feature helps ensure that the system can automate vehicle access based on predefined lists of license plates. An uploaded plate list ensures that these plates are recognized and granted access to the parking facility. Currently, the Vision portal offers whitelist and hotlist options, registered license plates cannot be denied access under the current setup.

View the Platelist guide for more details.

Plate Replacement

Plate Replacement is used to correct erroneous license plate reads. If a recurring parker’s plate is consistently read incorrectly, contact Flash Support and provide both the incorrect and correct plate information. The support team will then set up the Plate Replacements to ensure accurate future readings.

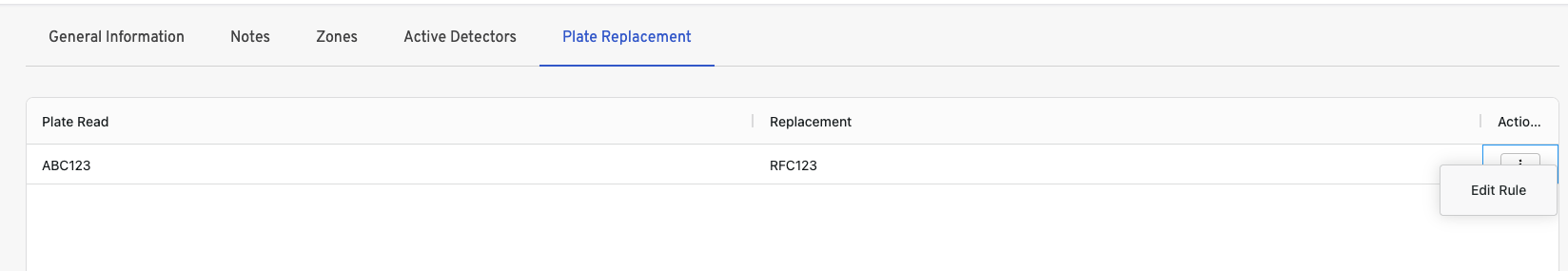

Plate Replacement lists are located under the Site Configuration tab > Plate Replacement. Once a plate is added, it can be edited by all Vision portal users.
